Vape Device Magnets: The Engineering Inside the Pod Click
Pod systems won on one gesture — click in, pull out, one-handed. That gesture is a pair of small NdFeB magnets, engineered against corrosion, heat and force drift.
Pod vapes won the market on one gesture: the cartridge clicks in, the cartridge pulls out, a thousand times, one-handed, without looking. That gesture is not a spring or a latch — on nearly every pod system shipped today it is a pair of small neodymium magnets. Here is the engineering hiding inside the click.
Why pods went magnetic
Early cartridge systems used threads and friction fits. Threads cross-thread, collect liquid, and demand two hands; friction fits loosen with wear. Magnets solved all of it at once:
- Self-alignment. The pod finds its own seat, even inserted carelessly — poles guide it home.
- Consistent retention for life. Magnetic force does not fatigue; the ten-thousandth insertion feels like the first.
- Clean separation. A deliberate tug releases the pod without levers or buttons — and the same magnets hold charging doors and mouthpiece caps shut across the category.
The actual magnet spec

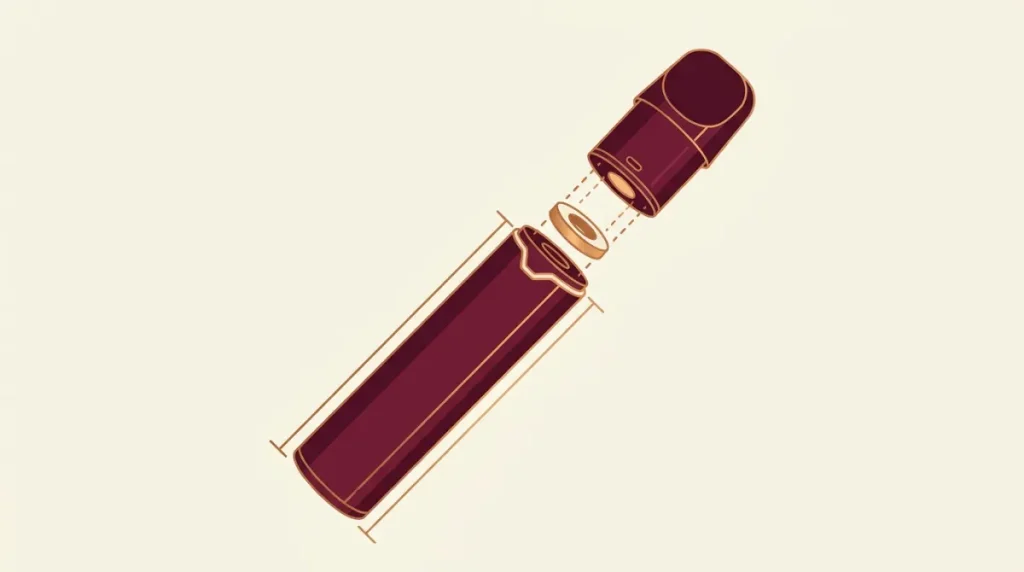

The typical pod connection uses two small NdFeB parts — discs, rings around the pogo pins, or rectangular blocks flanking the contacts:
| Parameter | Typical choice | Why |
|---|---|---|
| Size | ⌀3–6 mm × 1–2 mm, or 5×3×1.5 blocks | Fits beside pogo pins in a slim body |
| Grade | N45–N52 | Real force from tiny volume |
| Temp class | H (120 °C) near coil side | Heater proximity — see our temperature guide |
| Coating | NiCuNi, some designs epoxy | E-liquid is mildly corrosive and creeps everywhere |
| Direction | Axial, opposing pairs | Attract pod-to-body; see directions explained |
The three failure modes we design against
- Corrosion. The connection bay is a condensation trap. Plating quality — not grade — decides whether magnets survive year two. We salt-spray sample every lot for vape customers.
- Heat soak. Chain vaping pushes the coil zone well past comfortable; an N-class magnet beside it quietly fades. H-class costs cents more and removes the failure mode.
- Force drift between batches. Retention force is brand feel. A pod that suddenly seats “soft” reads as a fake to loyal users. Flux windows per lot keep the click identical.
Sourcing notes for device makers
Vape hardware iterates fast and orders swing wide. What matters in a supplier: prototype turns in days not weeks, no drama at 5k pilot volumes, and honest capacity when a SKU takes off. Those all describe how we run — send the connection stack-up and target pull force via an eight-parameter RFQ, or just start the conversation.
FAQ
Do magnets affect the coil, battery or draw sensor?
The heater coil and battery ignore static fields. Draw detection is a pressure sensor in most designs; where Hall switches are used, layout simply keeps the retention magnets out of the sensing axis.
Why do some pods use four magnets instead of two?
Four smaller magnets spread retention across the base, resist rocking, and free the center for pins and airflow. Cost rises slightly; stability and feel improve.
Nickel plating and skin contact?
Connection magnets sit inside the device, not against skin, so standard NiCuNi is the norm. Mouthpiece-adjacent magnets can be specified with epoxy or gold top-coats where brands prefer.
